Whichever SFC system you choose, from analytical to semi-prep to prep scale, we have an SFC fraction collection system to match your needs.
Analytical SFC and Semi-Prep SFC – MicroCyclone Fraction Collection
| The new MicroCyclone SFC fraction collection system has been designed and patented to suit all fraction collection requirements up to 30mL/min. It matches perfectly to our A-2080 analytical and SP-2086 semi-prep scale systems. |
|
|
|
|
|
| MicroCyclone System | | Cyclone Schematic | | MicroCyclone |
Features
- Patented disposable MicroCyclones –eliminate cross contamination and carry-over
- Recoveries of nearly 100% for non-volatile samples
- Single or 6-way fraction collection, add multiple banks for more samples
- Simple spring loading of sample tubes for easy mounting
- Flow rates up to 30mL/min
- Two fraction vial sizes - 40mL or 100mL
Preparative SFC –GLS (Gas/Liquid Separators)
For Preparative SFC we offer a high volume solution that has been designed for sample fraction collection at flow rates up to 200mL/min. The unique GLS SFC fraction collection system uses cyclone technology to separate the CO
2 for the liquid phase after the chromatographic separation is complete and has been developed to offer a rugged system for high sample throughput with low cross contamination and easy operator access. The standard 8 way configuration is housed in a fully evacuated safety cabinet which can be connected to the laboratory exhaust system. The front panel offers easy access to the GLS sample collection system.
Features - 8 way GLS fraction collector using cyclone technology
- Thermally controlled to prevent blockage
- High sample recovery
- Low cross-contamination
- Built-in safety cabinet to remove CO2 exhaust
- Easy access to sample bottles and control system
- Flow rates up to 200mL/min
- Flexible fraction collection options working with bottles
from 250mL to 4 liter
| |  |

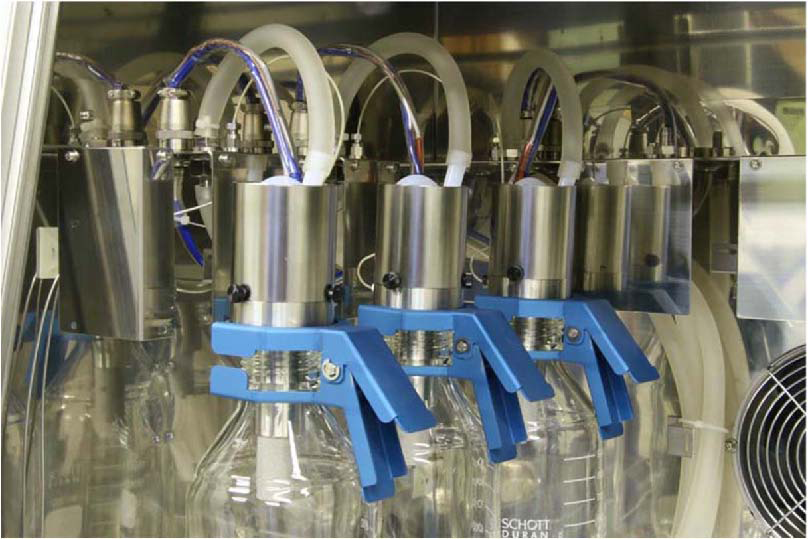

| | | GLS/Gas-Liquid Separators |
