IRT-7000 MICROSCOPE

System Description

The IRT-7000 offers two detectors as standard; a 16-channel linear array detector for infrared sample imaging and a single-point MCT detector. The combination of the standard automatic sample stage and "IQ Mapping" function allows mapping analyses of a large sample area, multi-area ATR mapping, and IR imaging of a specific area with extremely high spatial resolution and excellent sensitivity in a short time. With the combination of the FT/IR-6000 and the step scan option, this system offers an advanced capability for dynamic imaging as well as time-resolved measurements of a specific area. For multivariate analysis, the PCA (Principal Component Analysis) software package is standard.

System Features

• IQ Mapping for advanced mapping experiments
• Rapid IR Imaging experiments
• Up to four objectives and automated switching
• Exceptional visual observation quality
• Wide area mapping and multi-ATR imaging
• Dynamic Imaging with FT-IR step-scan option
• Multivariate analysis PCA (Principal Component Analysis)

FTIR Microscope Specifications

Principle	FT-IR microscope with cassegrain optical system
FT-IR Main Unit	Compatible with FT/IR-4000 / 6000 Series spectrometers
Measurement Method	Transmittance / Reflectance measurement (standard)
Detector	Linear array MCT detector (1 × 16 element) and Mid-band MCT detector (single element) (standard) Dual detector capability (Software controlled) User replaceable second detectors are optional. (single element type only)
Spatial Resolution	6.25 µm2 (32× cassegrain) and 12.5 µm2 (16× cassegrain) (standard), 20 µm2 (10× Cassegrain) (optional)
Wavenumber Range	7000 to 750 cm-1 (Linear array MCT detector) (Expandable to 10,000 cm-1) 7800 to 650 cm-1 (Mid-band MCT detector) (Expandable to 15,000 to 400 cm-1)
Wavelength Extension Using Optional Detectors	Single element detectors: - Narrow-band: MCT detector (7800-750 cm-1) - Wide-band: MCT detector (7800-450 cm-1) - DLATGS detector (7800-400 cm-1) - InSb detector: (15000-1850 cm-1) - InGaAs detector: (12000-4000 cm-1) Linear array detectors: - Linear array InSb detector: (10000-1900 cm-1) (1 × 16 element) - Linear array InGaAs detector: (10000-5000 cm-1) (1 × 16 element)
S/N Ratio	Linear array MCT detector 1000:1 (pixel resolution 12.5 µm2, resolution: 16 cm-1, Accumulation: 1 min, near 2200 cm-1) Single-element MCT detector 5000:1 (aperture size 100 µm, resolution: 4 cm-1, Accumulation: 1 min, near 2200 cm-1)
Sample Observation	High-resolution CMOS camera, 1.3 million pixels with a 3× optical zoom function (standard) IQ Monitor (simultaneous sample measurement and observation) and auto illumination functions are standard. 5.7 inch integrated color LCD display and binocular are optional with ATOS (Aperture Through Optical System).
• Observation Options	Visible polarization observation, Differential interference observation, Fluorescence observation Refractive objectives: 10×, 20× (optional)
Microscope Objectives	Cassegrain 16× and 32× (standard), 10× (optional) (software controlled) Automatic objective recognition function is standard. Up to four objectives can be selected by the software.
• Micro ATR Objective Options	- Selection of ATR crystals of ZnSe, Ge, and diamond (Optional pressure sensor is required.) - Removable prism with Ge crystal for sample observation (Optional pressure sensor is required.) - Stage-mounted with ZnSe crystal using transmittance light path (TPZ-ATR)
• Grazing Angle Options	Cassegrain grazing angle objective Optional IR polarizer for enhanced capabilities
Condenser Mirror Condenser mirror compensation	Cassegrain 16× and 32× (standard) (manual exchange), 10× (optional) Standard auto-compensation function
Aperture	PC-controlled vertical/horizontal adjustment and angle of rotation
Sample Stage	Auto XYZ stage, with Auto-focus function Movable distance: X: 100, Y: 75. Z: 25mm (1 µm step), Sample weight: 5 kg (Max), 500 g (normal) Joy stick option for XYZ auto-stage control
Purge	Sample area purge case is optional.
Full Vacuum	Factory option
Integrated Control Panel	Transmittance/ Reflection switching with indicator; detector switching with indicator; objective selection/indicator; open/close and rotation of aperture; auto-compensation of condenser mirror
Dimension	613 mm (H) × 302 mm (W) × 695 mm (D)
Weight	56 kg
Power Input Voltage	AC100 - 240 V, 50/60 Hz
Power Consumption	75 VA

Standard Function

IQ Mapping Function	Mapping measurement without moving the stage, ATR mapping*, Line mapping, Multi-point measurement
Auto XYZ Stage Control (with Auto-Stage)	Stage control, Centering, Area Mapping, ATR Mapping*, Line Mapping, Multi-point measurement (up to 100 points), Auto-focus, pressure sensor for ATR, multi-ATR mapping*
Multi-image (with Auto-Stage)	-The sample image is displayed by concatenating multiple CCD images. -Enables wide area display (The max. area is the movable range of the auto-stage) -Measurement area set on the sample image view
Real-time Display during the Imaging Measurement	Displays the spectrum, the imaging map of the intensity at a specified wavenumber and the measurement point on the microscope image
Data Processing	Peak height/ratio, peak area/ratio, peak shift, FWHH
Image View	Color 3D, Bird's eye, Contour, Color image, 3D, 2D, RGB and overlay views
PCA Mapping	Standard

* ATR mapping is available with ATR objective only. Mapping software for the TPZ is an option. (Auto XYZ stage only)

Optional Program

Secondary Structure Estimation	Available option (Analysis of the mapping data.)
Dynamic Imaging	Min. 10 µsec time-resolved measurement (step-scan FT-IR)

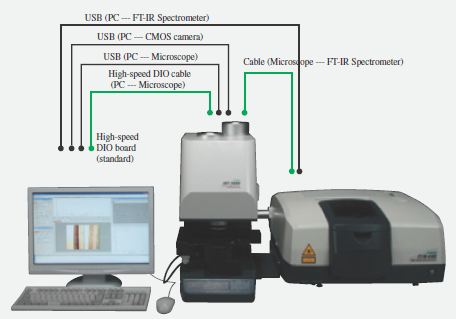

Standard Composition

Description	Quantity
IRT-7000 Microscope including - Objective cassegrain (16× and 32×) - Condenser cassegrain (16× and 32×) - Linear array MCT detector (1 × 16 element) - Mid-band MCT detector (single element) - CMOS camera - XYZ auto-stage	1 set
Spectra Manager installation disk	1 pc.
Instruction Manual	1 copy
Sample plate	1 pc.
Micro-sampling kit consisting of - Micro sampling knife S-type - Micro sampling knife H-type - Micro-needle for sample manipulation - Tweezers for micro sampling	1 set
High-speed DIO board for PC and cable	1 set
USB cable	2 pcs.
Cable between FT-IR and IR microscope	1 pc.
Connection plate between FT-IR and IR microscope	1 pc.
Connection pipe (for light path) between FT-IR and IR microscope	1 pc.
Spare fuses	2 pcs.
AC cable	1 set
Funnel	1 pc.
Lid for MCT dewar	2 pc.
Pipette	1 pc.
