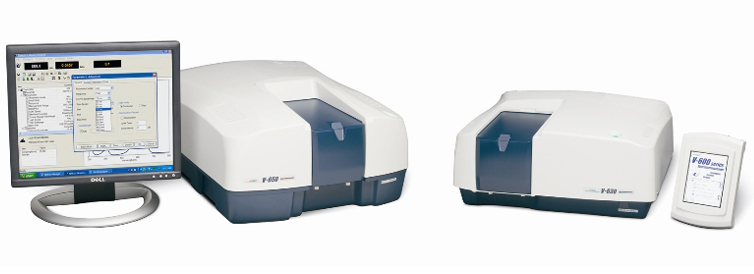

System Description
From an innovative optical layout to a simple comprehensive instrument control and data analysis software interface, the V-600 series does not compromise on accuracy, performance or reliability. JASCO is proud of its successful analytical instrument development, and is excited about the advances offered by this powerful product lineup. JASCO fully guarantees the reliability and performance of these instruments, and provides a complete range of customer support services.
The series includes:
•
V-630: General-purpose UV-Vis
•
V-630Bio: Life Science package
•
V-650: High resolution UV-Vis
•
V-660: Exceptional stray light rejection
•
V-670: Expansion into the NIR region
System Features
Compact Design
The compact optical design of the V-600 Series reduces space requirements in the modern laboratory.
Excellent optical performance
Reduced stray light enables highly precise measurements over a wide photometric range.
High speed scanning
High throughput optics and fast detectors provide high-speed scanning without wavelength tracking errors.
Dark correction
Stray light reduction features enable highly-accurate measurements of high-absorbance samples.
Monochromator step scanning
Step scan function provides reliable peak assignment of samples with sharp or narrow absorption peaks.
User-friendly graphical interfaces
New iRM intelligent remote module Spectra ManagerTM II and Spectra Manager CFR
IQ Accessory
Automatic accessory recognition.
IQ Start
A registered software program can be activated with a simple push of the 'Start Button'.
Full range of Accessories
Over 50 sampling accessories for gas, liquid and solid samples are available for specific sampling applications.
Accurate and reliable
A USP, EP and JP compliant instrument validation is provided. IQ/OQ support is available as an option.
Wide wavelength range from UV to NIR
High energy throughput provides excellent signal-to-noise ratio for the entire UV to NIR spectral range.
Solutions for liquid samples
UV-Vis spectroscopic analysis is a common analytical procedure in which the liquid sample spectrum is measured and quantitative analysis is performed using the maximum absorption wavelength. Today, increasingly sophisticated applications that include time and temperature variables are being employed in such fields as biochemistry and biotechnology, and in clinical laboratories. JASCO offers various sampling accessories to support the growing demand for complex applications and provides the ideal system tailored to meet specific customer requirements. In a PC controlled configuration, these intelligent accessories enable high-speed data acquisition and high-measurement accuracy.
 |
DNA melting analysis Using a newly developed 8-position V-series cell changer, transmittance or absorbance measurements for up to 8 samples can be collected simultaneously with temperature control from 0 to 100°C. The data shown are for the thermal melting of a 50 mg/mL DNA solution (200 mM phosphate buffer pH7.0) obtained from calf thymus, monitored at 260 nm and showing increasing absorption. The Tm (melting point) can be observed around 88°C. The 8-position cell changer can be utilized in other applications, such as biological macromolecules, enzyme activity, liquid crystals, etc. |
Solutions for solid samples
With an increasing demand for evaluation of new materials such as polymers, glasses, ceramic materials and semiconductors using optical spectroscopy, several different types of accessories are required for the measurement of solid samples. Many of the properties of solid samples require not only UV-Vis measurements, but also measurement into the NIR region. To satisfy these requirements, JASCO offers several reflection accessories, such as specular reflection attachments and integrating spheres for both UV-Vis and UV-Vis/NIR. An extended large sample compartment is also available as well as an integrating sphere with an optical fiber interface for such applications as nondestructive food analysis in the NIR region.
Reflectance measurements of plastic plates by using the integrating sphere
Several types of integrating spheres are available for the V-600 series to comply with various application requirements. Integrating spheres for horizontal sampling, models PIV-756/PIN-757, can mount the sample horizontally and provide measurements of small sample sizes by using a lens. The models ISV-722/ISN-723 (60 mm diam.) and ILV-724/ILN-725 (150 mm diam.) provide the ability to eliminate specular reflectance. Sample reflectance can be measured either including the specular reflectance or providing only the diffuse reflectance.
| Absolute Reflectance | Specular Reflectance | Integrating Sphere |
 |  |  |
Cross-platform spectroscopy software Spectra Manager ™ II & CFR
JASCO's Spectra ManagerTM II, the latest version of the innovative cross-platform spectroscopy software, allows full system control and advanced data processing. Spectra Manager II is also available as a 21 CFR part 11 compliant version. Both software packages are designed to provide easy operation and the ability to perform a wide range of applications from routine to sophisticated procedures.
• Full system control with instrument validation (standard)
• Powerful data processing and spectral analysis
• Report publishing using JASCO Canvas
• Kinetics, film thickness, color analysis (standard)
• A range of optional software programs
Intelligent Remote Module iRM-700
The iRM-700 intelligent remote module incorporates a wide display with a color LCD touch screen and provides access to all functions necessary for routine applications. The iRM conveniently guides the operator through routines encompassing data acquisition to data processing. The obtained data can be automatically printed to USB printers, or saved to a compact flash memory card for further processing on a PC.
• High quality color LCD display
•Operation using Touch Pen
•Enhanced quantitative analysis
•Equipped with instrument validation software
•Touch-sensitive screen
•Easy data transfer to a PC
•Print to a USB printer
New Accessory for the V-600 Series UV/Vis Spectrometers
Precise analysis of micro-volume samples for Life Science Studies
The SAH-769 One Drop is a dedicated accessory for the V-600 Series to measure micro-volume samples of protein and nucleic acid. The sampling procedure is quite easy, by simply placing a droplet of a sample on the disk cell window, providing rapid measurements within 20 seconds per sample. The minimum sample volume is 5 µl for the standard 1 mm pathlength disk cell, while 0.6 µL can be used for the optional 0.2 mm pathlength disk cell. The shorter optical pathlength allows measurements of high concentration samples without dilution. A precise optical pathlength is maintained, assuring excellent reproducibility of measurements.
Quick, but highly accurate measurement by a research-grade spectrophotometer
Only 20 seconds per sample.
Quantitative analysis of calf thymus DNA using a cell with a 0.2 mm pathlength
Only 0.6 µl sample volume is required.
Spectra of calf thymus DNA solutions
Calibration curve of calf thymus DNA
The figure illustrates good linearity up to approx. 3000 ng/µL. This is equivalent to a linearity up to 35 Abs by using a 10 mm pathlength cell.
